JCuda

Java bindings for the CUDA runtime and driver API



With JCuda it is possible to interact with the CUDA runtime and driver API from Java programs. JCuda is the common platform for all libraries on this site.


You may obtain the latest version of JCuda and the JCuda source code in the Downloads section.




Features


The following features are currently provided by JCuda:


Known limitations:

Please note that not all functionalities have been tested extensively on all operating systems, GPU devices and host architectures. There certainly are more limitations, which will be added to the following list as soon as I become aware of them:


Documentation


You may either browse the JCuda API documentation here, or download the JCuda documentation in a ZIP file from the Downloads section.

Most of the documentation is directly taken from the CUDA Reference Manual and the CUDA Programming Guide from the the NVIDIA CUDA documentation website.




JCuda runtime API


The main application of the JCuda runtime bindings is the interaction with existing libraries that are built based upon the CUDA runtime API.

Some Java bindings for libraries using the CUDA runtime API are available on this web site, namely, The following snippet illustrates how one of these libraries may be used with the JCuda runtime API.

You may also want to download the complete, compileable JCuda runtime API sample from the samples page that shows how to use the runtime libraries.


// Allocate memory on the device and copy the host data to the device
Pointer deviceData = new Pointer();
cudaMalloc(deviceData, memorySize);
float hostData[] = createInputData();
cudaMemcpy(deviceData, Pointer.to(hostData), memorySize,
    cudaMemcpyKind.cudaMemcpyHostToDevice);

// Perform in-place complex-to-complex 1D transforms using JCufft
cufftHandle plan = new cufftHandle();
JCufft.cufftPlan1d(plan, complexElements, cufftType.CUFFT_C2C, 1);
JCufft.cufftExecC2C(plan, deviceData, deviceData, JCufft.CUFFT_FORWARD);

// Copy the result from the device to the host and clean up
cudaMemcpy(Pointer.to(hostData), deviceData, memorySize,
    cudaMemcpyKind.cudaMemcpyDeviceToHost);
cudaFree(deviceData);
Java2html




JCuda driver API



The main usage of the JCuda driver bindings is to load PTX- and CUBIN modules and execute the kernels from a Java application.

The following code snippet illustrates the basic steps of how to load a CUBIN file using the JCuda driver bindings, and how to execute a kernel from the module.

You may also want to download a complete JCuda driver sample from the samples page.


// Initialize the driver and create a context for the first device.
cuInit(0);
CUdevice device = new CUdevice();
cuDeviceGet(device, 0);
CUcontext context = new CUcontext();
cuCtxCreate(context, 0, device);

// Load the PTX that contains the kernel.
CUmodule module = new CUmodule();
cuModuleLoad(module, "sample.ptx");

// Obtain a handle to the kernel function.
CUfunction function = new CUfunction();
cuModuleGetFunction(function, module, "functionName");

// Allocate the device input data, and copy the
// host input data to the device
CUdeviceptr deviceData = new CUdeviceptr();
cuMemAlloc(deviceData, memorySize);
cuMemcpyHtoD(deviceData, hostData, memorySize);

// Set up the kernel parameters
Pointer kernelParameters = Pointer.to(
    Pointer.to(deviceData)
);

// Call the kernel function.
cuLaunchKernel(function,
    gx, gy, gz,               // Grid dimension
    bx, by, bz,               // Block dimension
    sharedMemorySize, stream, // Shared memory size and stream
    kernelParameters, null    // Kernel- and extra parameters
);

// Copy the data back from the device to the host and clean up
cuMemcpyDtoH(hostData, deviceData, memorySize);
cuMemFree(deviceData);
Java2html




OpenGL interoperability



Just as CUDA supports interoperability with OpenGL, JCuda supports interoperability with JOGL and LWJGL
The OpenGL interoperability makes it possible to access memory that is bound to OpenGL from JCuda. Thus, JCuda can be used to write vertex coordinates that are computed in a CUDA kernel into Vertex Buffer Objects (VBO), or pixel data into Pixel Buffer Objects (PBO). These objects may then be rendered efficiently using JOGL or LWJGL. Additionally, JCuda allows CUDA kernels to access data that is created on Java side efficiently via texture references.

There are some samples for JCuda OpenGL interaction on the samples page.

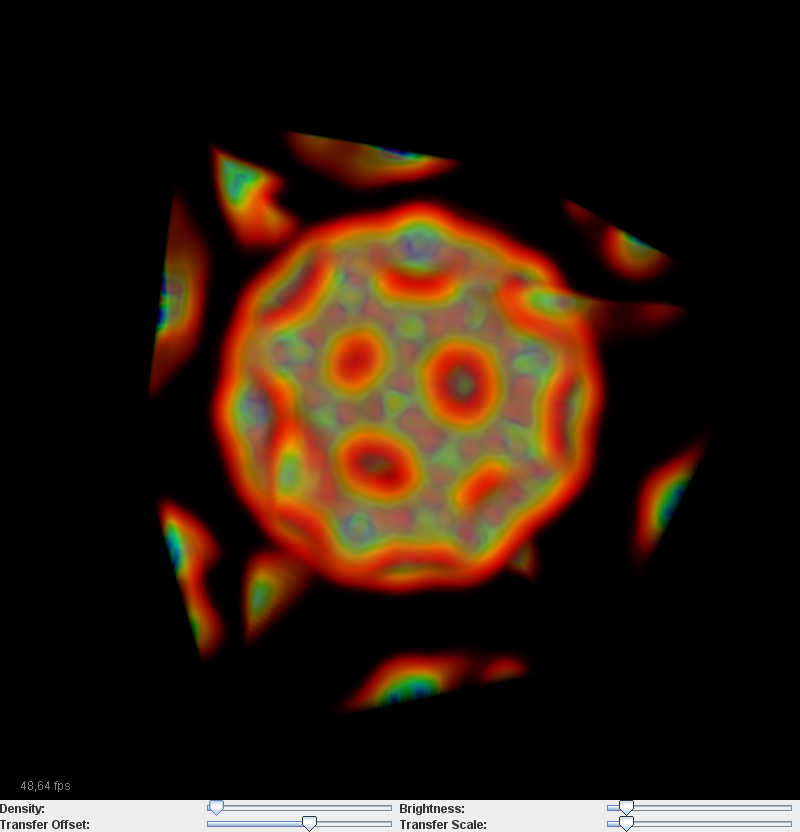

The following image is a screenshot of one of the sample applications that reads volume data from an input file, copies it into a 3D texture, uses a CUDA kernel to render the volume data into a PBO, and displays the resulting PBO with JOGL. It uses the kernels from the Volume rendering sample from the NVIDIA CUDA samples web site.






Pointer handling


The most obvious limitiation of Java compared to C is the lack of real pointers. All objects in Java are implicitly accessed via references. Arrays or objects are created using the new keyword, as it is done in C++. References may be null, as pointers may be in C/C++. So there are similarities between C/C++ pointers and Java references (and the name NullPointerException is not a coincidence). But nevertheless, references are not suitable for emulating native pointers, since they do not allow pointer arithmetic, and may not be passed to the native libraries. Additionally, "references to references" are not possible.

To overcome these limitations, the Pointer class has been introduced in JCuda. It may be treated similar to a void* pointer in C, and thus may be used for native host or device memory, and for Java memory:
// Create a new (null) pointer
Pointer devicePointer = new Pointer();

// Allocate device memory at the given pointer
JCuda.cudaMalloc(devicePointer, 4 * Sizeof.FLOAT);

// Create a pointer to the start of a Java array
float array = new float[8];
Pointer hostPointer = Pointer.to(array);

// Add an offset to the Pointer
Pointer hostPointerWithOffset = hostPointer.withByteOffset(2 * Sizeof.FLOAT);

// Copy 4 elements from the middle of the Java array to the device
JCuda.cudaMemcpy(devicePointer, hostPointerWithOffset, 4 * Sizeof.FLOAT,
  cudaMemcpyKind.cudaMemcpyHostToDevice);

Pointers may either be created by instantiating a new Pointer, which initially will be a NULL pointer, or by passing either a (direct or array-based) Buffer or a primitive Java array to one of the "to(...)" methods of the Pointer class.

Pointers to pointers


It is possible to pass an array of Pointer objects to the "to(...)" method, which is important to be able to allocate a 2D array (i.e. an array of Pointers) on the device, which may then be passed to the library or kernel. See the JCuda driver API example for how to pass a 2D array to a kernel.

However, there are limitations on how these pointers may be used. Particularly, not all types of pointers may be written to. When a pointer points to a direct buffer or array, then this pointer should not be overwritten. Future versions may support this, but currently, an attempt to overwrite such a pointer may cause unspecified behavior.








Asynchronous operations




NOTE: This section will be updated soon, according to the notes about asynchronous operations that have been added in the final releases of CUDA 4.1, and information about stream callbacks that have been introduced in CUDA 5.0

In previous versions of JCuda, asynchronous operations had not officially been supported. This limitation actually applied only to a specific group of operations, while other asynchronous operations have already been working properly. The current version of JCuda may be used to perform specific kinds of asynchronous operations, but note that not all of them have been tested extensively under all conditions.

This section will summarize the different kinds of asynchronous operations, and detail which limitations still exist in the current version.



Asynchronous operations in CUDA


CUDA offers various types of asynchronous operations. The most important ones are Additionally, the runtime libraries offer methods to set a cudaStream_t that should be associated with the functions of the respective library, for example via cublasSetStream or cufftSetStream. In general, all these asynchronous functions return immediately when they are called, although the result of the computation may not yet be available. The stream and event handling functions may be used to achieve proper synchronization between different tasks that may be associated with different streams.



Limitations of the support for asynchronous operations in JCuda


The main difficulties with asynchronous operations arise when host memory is involved. When an array is passed from Java to CUDA via JNI, then the array may be copied, and CUDA may internally be working with a copy of the array. The decision whether the memory is copied or not is made by the Java Virtual Machine and can not be influenced by the programmer. This basically means that the function either has to block until the respective operation is completed, or the result of the operation may be undefined.

Therefore, the following asynchronous operations are NOT supported by JCuda, and may result in undefined behavior:
Future versions of JCuda may even throw an exception when an attempt is made to call such a function with invalid parameters.

Note that calling these functions with pointers to device memory is allowed. Also note that this limitation explicitly refers to Java arrays. It is also possible to create a pointer to a direct buffer. Such a buffer may be created using the ByteBuffer.allocateDirect method of the Java NIO ByteBuffer class, and consists of host memory that may directly be accessed by the native functions. Therefore, it should be possible to use these direct buffers in asynchronous operations, but this has not been tested.



Asynchronous operations in CUBLAS and CUSPARSE


The most recent versions of CUBLAS and CUSPARSE (as defined in the header files "cublas_v2.h" and "cusparse_v2.h") are inherently asynchronous. This means that all functions return immediately when they are called, although the result of the computation may not yet be available. This does not impose any problems as long as the functions do not involve host memory. However, in the newest versions of CUBLAS and CUSPARSE, several functions have been introduced that may accept parameters or return results of computations either via pointers to device memory or via pointers to host memory.

These functions are also offered in JCublas2 and JCusparse2. When they are called with pointers to device memory, they are executed asynchronously and return immediately, writing the result to the device memory as soon as the computation is finished. But due to the limitations described above, this is not possible when they are are called with pointers to Java arrays. In this case, the functions will block until the computation has completed. Note that the functions will not block when they receive a pointer to a direct buffer, but this has not been tested extensively.
